Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high.
Please send your inquiry to Email:joy@dumanlaser.com
Item NO. :
DM-L200-PPayment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :

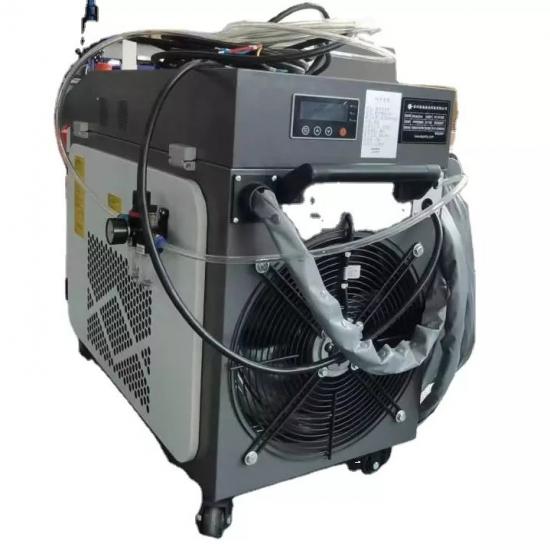

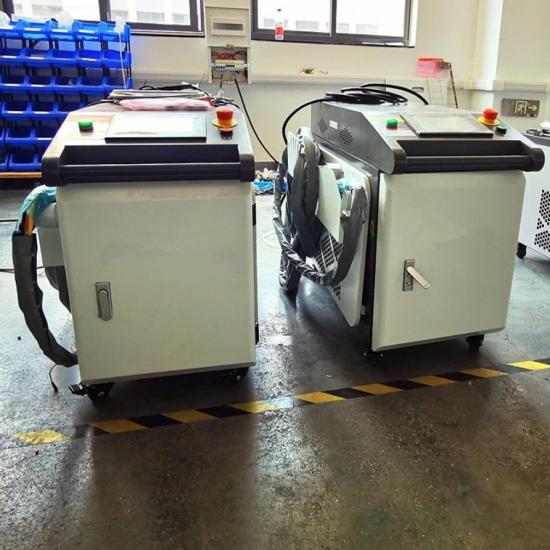

15 daysHandheld Portable Nanosecond 200W Laser Cleaning Machine Rust Removal With Air Cooling
Laser cleaning technology refers to the process of irradiating the surface of the workpiece with a high-power density laser beam to instantly evaporate or peel off the dirt, rust or coating on the surface, thereby achieving a clean process. This cleaning equipment is a new high-tech product for surface treatment, which is easy to install, operate and automate. The operation is simple, and it can be cleaned without chemical reagents, without media, without dust and without water. It can remove resin, paint, oil, stain, dirt, rust, coating, plating and oxide layer on the surface of the object.
Advantages of Laser Cleaning
1. Non-contact cleaning, no damage to the parts matrix.
2. The laser cleaning head is lightweight and can be operated by hand for a long time
2. Precise cleaning, which can realize selective cleaning of precise position and precise size.
3. No chemical cleaning solution, no consumables, safe and environmentally friendly.
4. The operation is simple, it can be powered on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
5. Red light assists in focusing, and the focus position can be adjusted according to different field lenses
6. High cleaning efficiency and save time.
7. The laser cleaning system is stable and requires almost no maintenance.
Detailed technical requirements
|
Model |
DM-L200-P |
|
Laser level |
Class IV |
|
Max. laser Power |
200±3W |
|
Wavelength |
1064±3nm |
|
Laser mode quality（M2） |
＜1.3 |
|
Laser power stability |
±5 |
|
Laser single pulse energy |
5mj (max) |
|
Laser power adjustment range |
1 |
|
Laser frequency adjustment range |
1～4000khz |
|
Pulse width adjustment range |
1～500ns |
|
Beam diameter |
4.0±0.5，7.5±0.5（customizable）MM |
|
Max. scanning width |
150mm |
|
Cooling mode |
Air cooling |
|
Cleaning mode |
Spiral wire (level 10 adjustable) |
|
Parameter adjustment mode |
Dual touch screen control system |
|
Touch system size |
7 + 4 inches |
|
Fiberlength |
5 meters |
|
Input power |
AC220V±10 |
|
Overall power |
800W |
|
Structure of equipment |
Handheld |
|
Work environment |
5—40℃，≤70 |
|
Dimensions |
680*300*480mm |
|
Weight |
48kg |
Samples
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
Laser Cleaning Machine is suitable for cleaning rust layers, thick paint layers, deep oil stains, rough surfaces and weld seams. It does not affect the surface of the substrate, and the efficiency is very high. Email: joy@dumanlaser.com
