Small High Precision Fiber Laser Cutter For Metal R&D And Production Cutting


Laser cutting machineis mainly applicable to all kinds of metal sheets: stainless steel, carbon steel, galvanized sheet, copper sheet, aluminum sheet, various alloy sheets, rare metals, etc.

CFA series are widely used for cutting and forming of carbon steel, stainless steel, aluminum, copper and other metal materials.

Please send your inquiry to Email:joy@dumanlaser.com

  • Item NO. :

    DM-CFA03

  • Payment :

    L/C D/A D/P T/T Western Union

  • Product Origin :

    China

  • Shipping Port :

    Xiamen

  • Lead Time :

    15 days

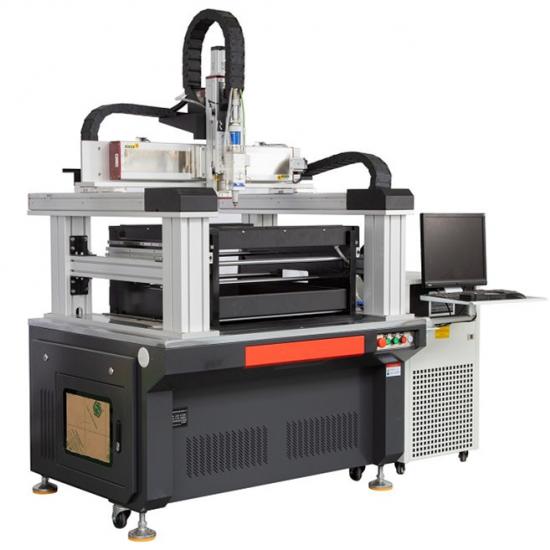

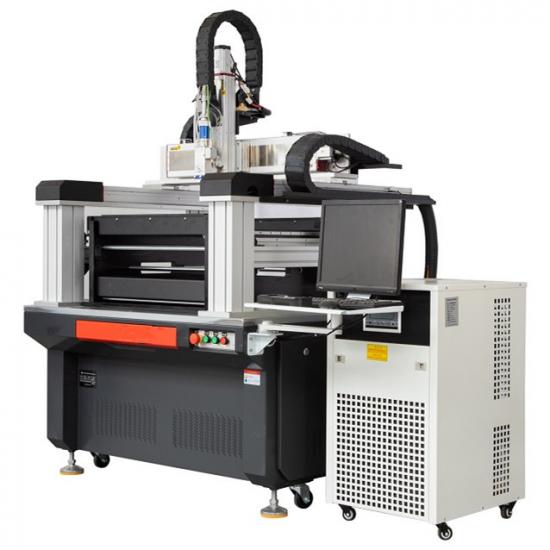

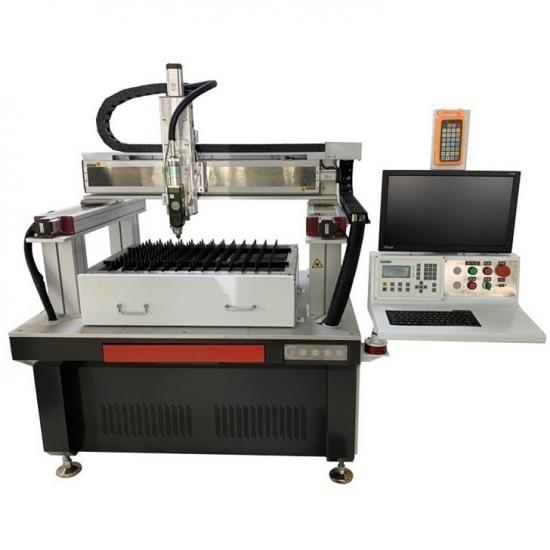

Small High Precision Fiber Laser Cutter For Metal R&D And Production Cutting

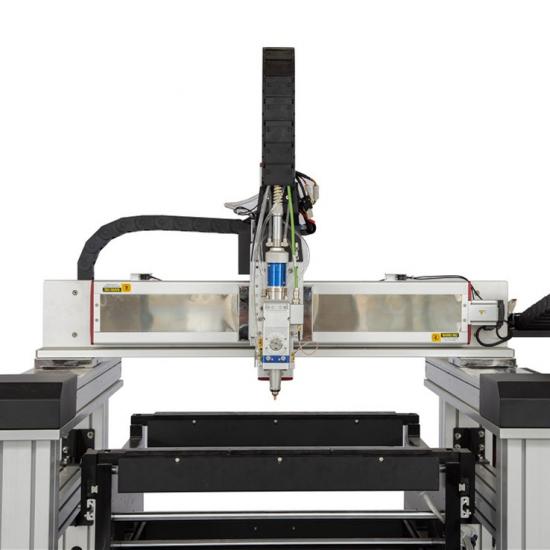

The laser cutting machine adopts the world famous German IPG fiber laser source, Raycus fiber laser source, Raytools cutting head and dynamic focusing system. It can cut various metal materials with high precision and high speed. Because the laser is optical fiber transmission, there is no need to maintain or adjust the laser light path, so the machine failure rate can be greatly reduced and the service life can be extended. The large-format cutting range can meet the needs of various metal processing.



Applications

Laser cutting machine is suitable for machinery and equipment, advertising elevators, electrical equipment, meal processing, textile machinery, food machinery, construction machinery, automobiles, ships, molds, aerospace and processing industries.

Applicable to all kinds of metal sheets: stainless steel, carbon steel, galvanized sheet, copper sheet, aluminum sheet, various alloy sheets, rare metals, etc.

CFA series are widely used for cutting and forming of carbon steel, stainless steel, aluminum, copper and other metal materials.



Features and Benefits:

  1. High speed high precision, high efficiency, low cost and energy saving.
  2. The life of the laser source is up to 100,000 hours.
  3. The cutting head has an intelligent auto-focusing function, which is quick and sensitive in response.
  4. Non-contact cutting, the cutting edge is less affected by heat, and the quality of the cutting workpiece is good.
  5. Using special cutting software, any graphics or text can be designed at will, instant processing, convenient and flexible operation.
  6. Select high-performance servo motor and lead screw drive guide structure, high-precision ball screw, high-precision bearing to ensure the excellent performance of the equipment.
  7. The guide rail adopts fully enclosed protection to reduce dust pollution, which greatly guarantees the accuracy and service life of the equipment.


Technical parameter:

Model

DM-CFA03

Processing width (length and width)

200*300, 300*400, 600*800,600*1000, 900*1200 optional

Laser power

1000-6000W

Laser

Raycus/MAX/IPG(optional)

Laser cutting head

OSPR/Raytools(optional)

Wavelength

1,070±10nm

Max cutting speed

2m/s

Minilinewidth

0.1 mm

Repeatability precision

0.03 mm

positional accuracy

± 0.05 mm/m

cooling system

water-cooling

power supply

380V 50/60HZ 50A

totalpowerconsumption

3KW-18KW


Sample
