Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern.
Please send your inquiry to Email: joy@dumanlaser.com
Item NO. :
DM-C2000W-8025Payment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :
15 daysStainless Steel Dimple Jacket Pillow Plate Laser Welding Machine
Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.

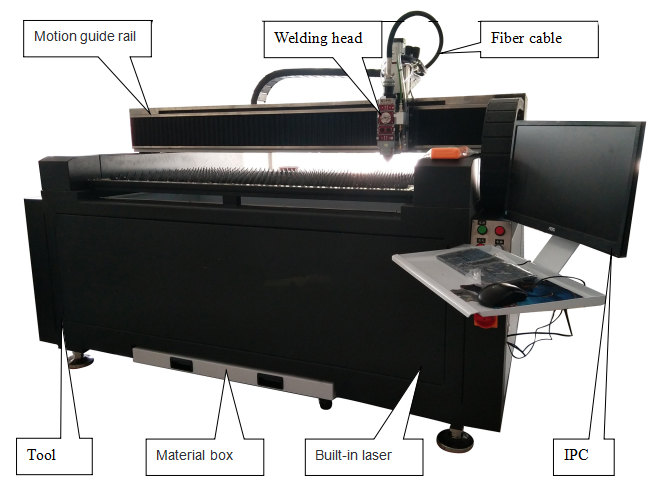

Components
1. 2000W (Optional) fiber continuous laser;
2. Laser welding head;
3. 8000*2500mm (customizable) precision motion control platform;
4. Welding motion control card;
5. Laser-specific cooling system.
|
Model
|
DM-C2000W-8025
|
|
Wavelength
|
1064nm
|
|
Max laser power
|
2000 W
|
|
Fiber length
|
15m
|
|
Optical core diameter
|
25UM
|
|
Operating mode
|
Frequency modulated continuous wave
|
|
Frequency
|
50-50K
|
|
Degree of instability
|
<3%
|
|
Type of cooling
|
Water cooling
|
|
Width
|
<5nm
|
|
Direction of vibration
|
Arbitrarily
|
|
Resist high reflexes
|
Yes
|
|
Laser welding spot
|
>0.4mm adjustable
|
|
Controlling power range
|
0-100% adjustable
|
|
Operating temperature range
|
10-40°
|
|
Working voltage
|
380v
|
|
Energy consumption
|
5000W
|
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
The continuous fiber laser welding machine uses the most advanced fiber laser as the laser light source, the laser specially designed for high-reflection materials (aluminum), and the machine designed and manufactured by the company's independent research and development has good rigidity and stability. Please send your inquiry to Email: joy@dumanlaser.com
It is widely used in the processing of dental dentures, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding, etc. Used in manufacturing, electronics industry, powder metallurgy, automotive industry, biomedicine; laser welding of BT20 titanium alloy, HEI30 alloy, Li-ion battery, etc. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries. Please send your inquiry to Email: joy@dumanlaser.com
