Laser Cladding Machines widely used in mining, coal, petroleum, metallurgical industry, cement machinery industry, electrical machinery industry, construction machinery, auto repair industry, printing industry, paper industry and other industries.
Email: joyhuang@simymachine.com
Item NO. :
DM-C300WPayment :
L/C D/A D/P T/T Western UnionProduct Origin :
ChinaShipping Port :
XiamenLead Time :

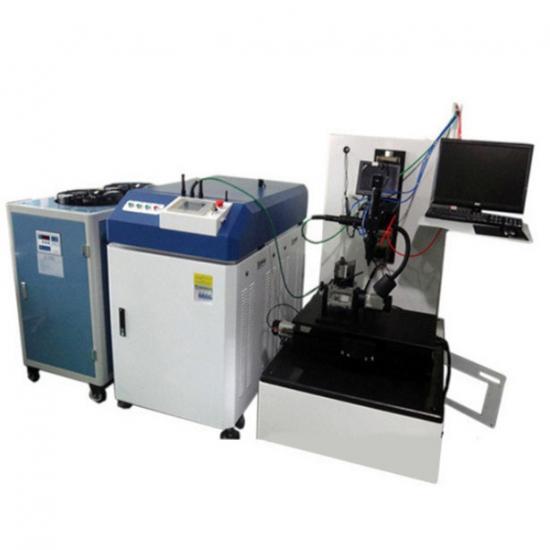

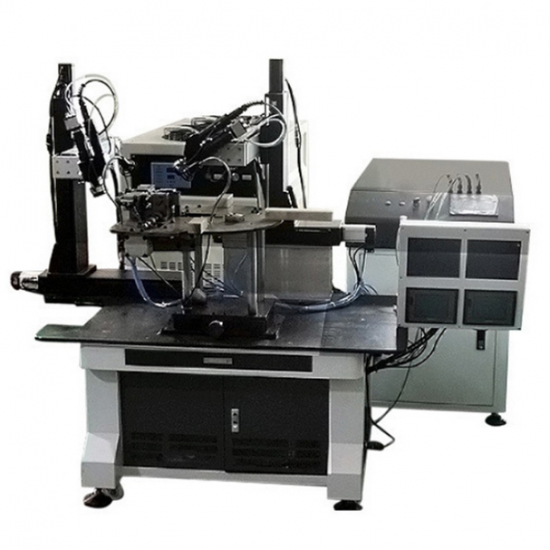

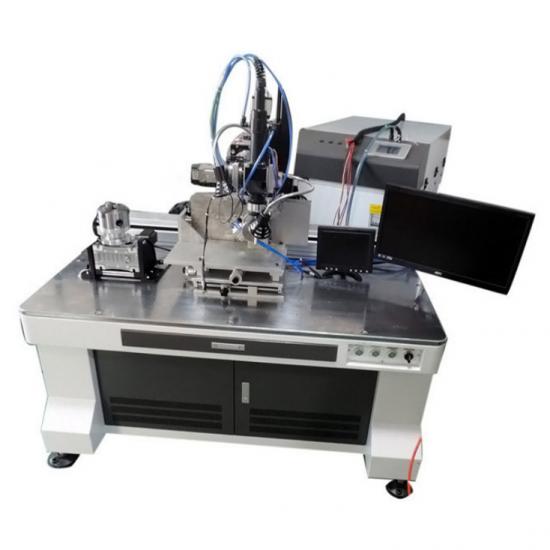

15 daysFactory Price of 300W 600W Fiber Laser Cladding Machine for Repairing Metal Products
Laser cladding refers to placing the selected coating material on the surface of the cladding substrate in different feeding methods, and irradiating it with a laser to melt it and a thin layer on the surface of the substrate at the same time, and rapidly solidify to form a very low dilution. The surface coating, which is metallurgically combined with the substrate, significantly improves the wear resistance, corrosion resistance, heat resistance, oxidation resistance and electrical properties of the substrate surface, so as to achieve the purpose of surface modification or repair, which not only satisfies the specific requirements for the material surface Performance requirements, but also save a lot of valuable elements.
Compared with surfacing, spraying, electroplating and vapor deposition, laser cladding has the characteristics of small dilution, dense structure, good combination of coating and substrate, more suitable cladding materials, and large changes in particle size and content. Therefore, laser cladding technology The application prospect is very broad. Such as, mining, coal, petroleum, metallurgical industry, cement machinery industry, electrical machinery industry, construction machinery, auto repair industry, printing industry, paper industry and so on.
Features
1. The cladding layer has fine grains and dense structure, so the hardness is generally higher, and the wear resistance and corrosion resistance are also more excellent.
2. The dilution rate of the cladding layer is low. Due to the short laser action time, the melting amount of the substrate is small, and the dilution rate of the cladding layer is low (generally only 5%-8%), so it can be used in thin cladding layers. In any case, the required composition and properties can be obtained, and expensive coating materials can be saved.
3. The heat-affected zone of laser cladding is small, the deformation of the workpiece is small, and the yield of cladding is high.
4. The laser cladding process is easy to achieve automatic production, and the quality of the coating is stable. For example, the thickness of the cladding can be continuously adjusted during the cladding process, which is difficult to achieve in other processes.
Specification parameters
|
Laser Power |
300W/600W |
|
Application |
Welding cladding |
|
Current |
AC |
|
Action Object |
Metal |
|
Principle of Action |
Pulse |
|
Product Alias , |
Fiber Laser Welder |
|
Focal spot diameter |
0.1~3(mm) |
|
Laser welding depth |
2mm |
|
Laser up and down travel distance |
can be customized |
|
Laser welding frequency during batter |
0~100HZ |
